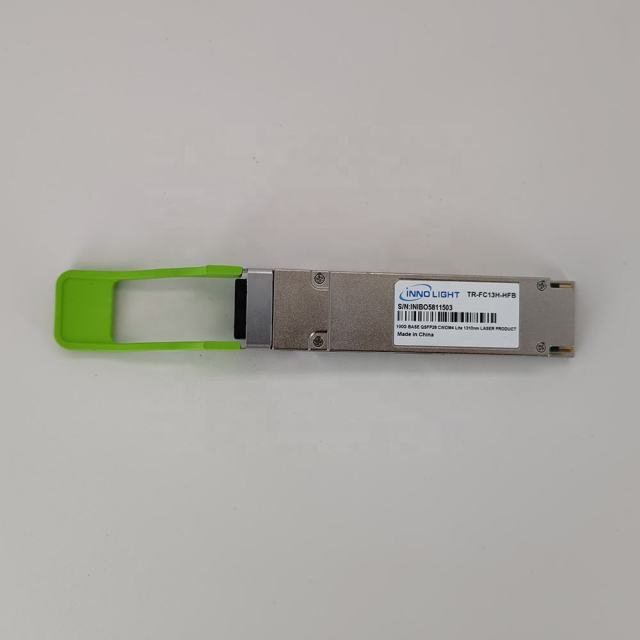

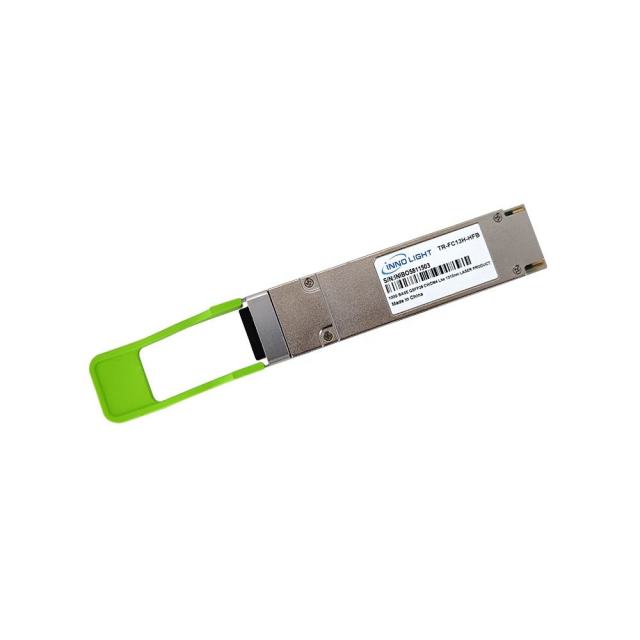

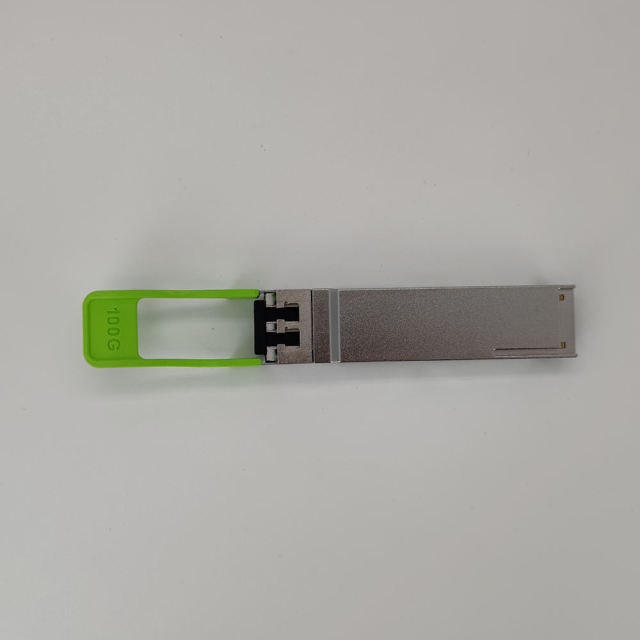

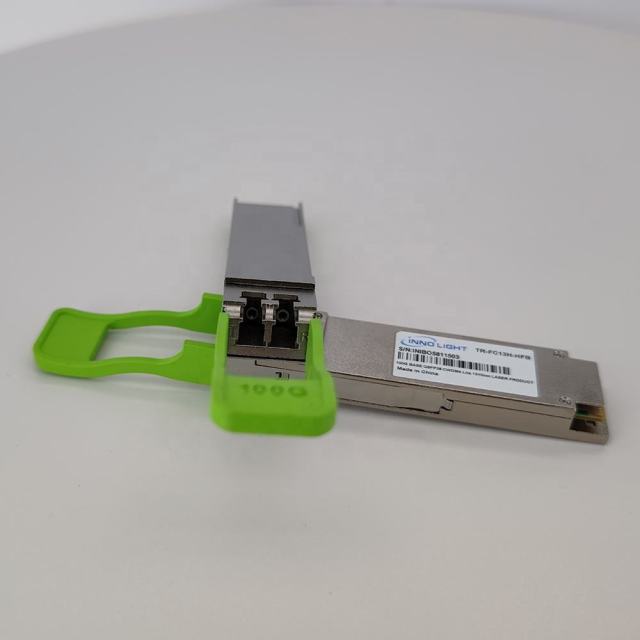

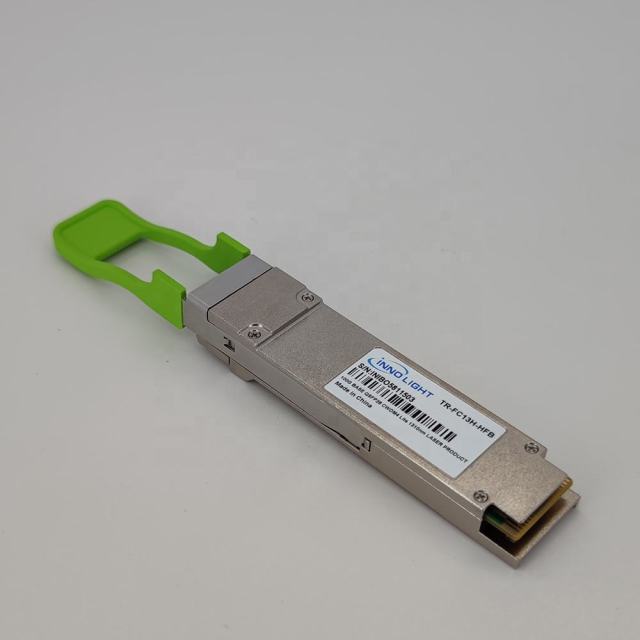

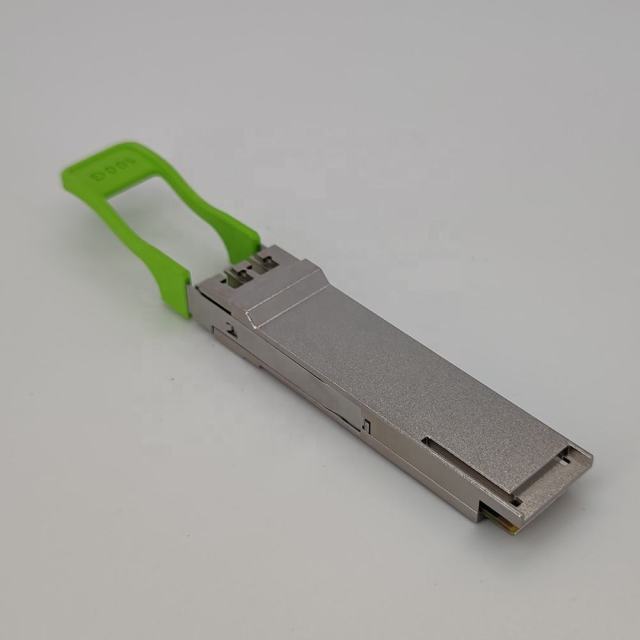

Innolight TR-FC13T-HFB 100G QSFP28 CWDM4 Lite Transceiver, 2km, SMF

Product Overview: Compatible QSFP-100G-SM-SR / 100G QSFP28 CWDM4 Lite Transceiver

This 100G QSFP28 transceiver is a CWDM4-based optical module designed for high-speed data center and enterprise networking applications. It supports transmission distances of up to 2km over single-mode fiber (SMF) with low power consumption.

Key Features

• Form Factor: QSFP28 (QSFP+ MSA Compliant)

• Data Rate: Supports up to 103.125 Gbps aggregate bandwidth with four channels at up to 25.78 Gbps each.

• Wavelength: Utilizes four CWDM lanes at 1271nm, 1291nm, 1311nm, and 1331nm.

• Reach: Up to 2km over Single-Mode Fiber (SMF).

• Low Power Consumption: Maximum power dissipation of 3.5W.

• Power Supply: Single +3.3V.

• Operating Temperature: 0°C to 70°C (Commercial) / -5°C to 85°C (Industrial).

• Compliance: RoHS 6 compliant.

Applications

• 100 Gigabit Ethernet (100GbE)

• InfiniBand: EDR, QDR, DDR, and SDR

• Data Center Interconnects

• Enterprise Networking and Storage Area Networks

Technical Specifications
