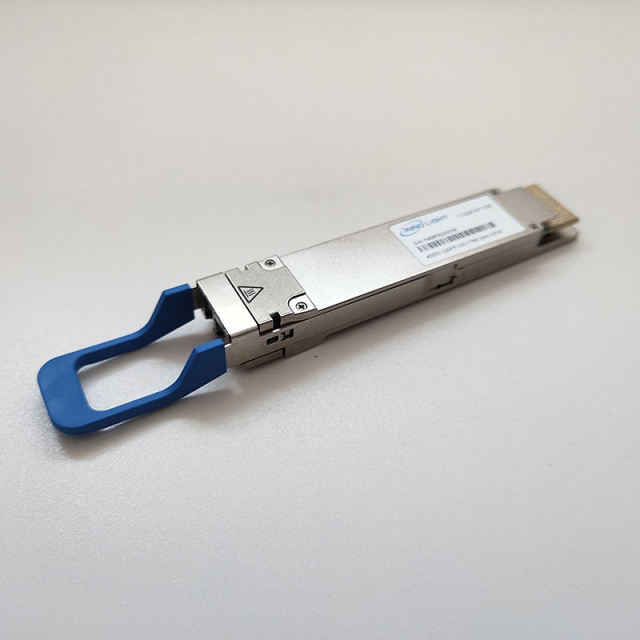

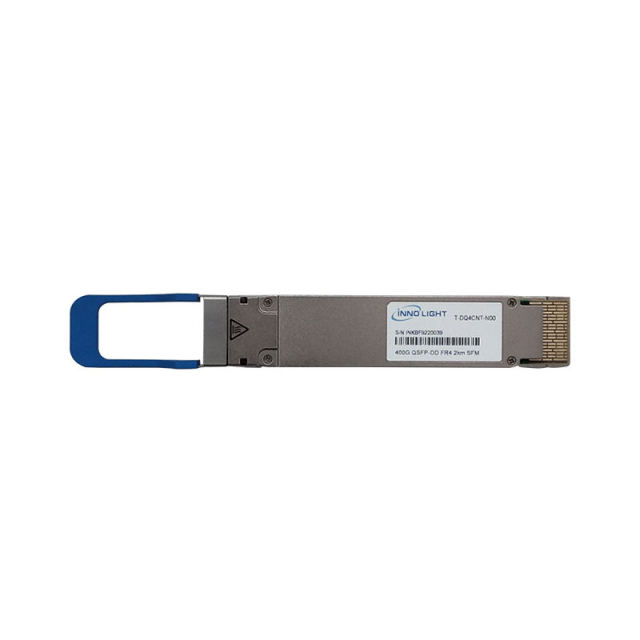

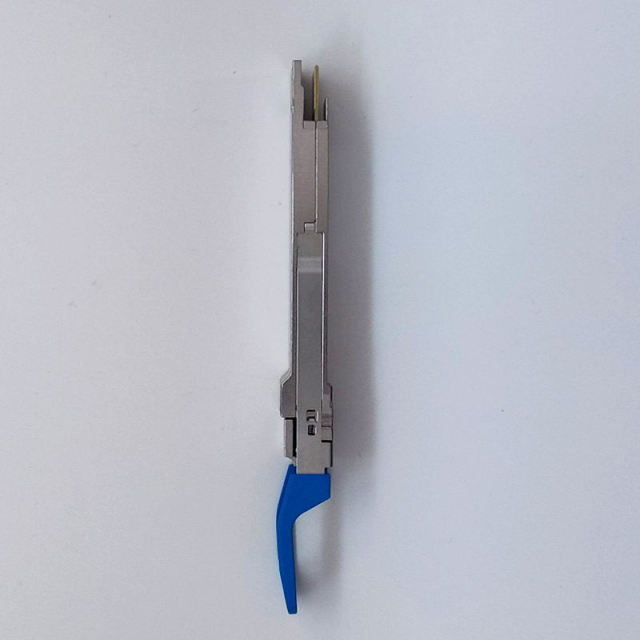

Innolight T-DQ8FNS-N00 400G QSFP-DD SR8 Optical Transceiver

Product Overview: Innolight T-DQ8FNS-N00 400G QSFP-DD SR8 Transceiver

The Innolight T-DQ8FNS-N00 is a 400G QSFP-DD SR8 optical transceiver designed for high-density data center and enterprise networking applications. This parallel optical module delivers enhanced port density and significant total system cost savings.

Key Features & Specifications:

• Form Factor: QSFP-DD (Quad Small Form Factor Pluggable Double Density)

• Data Rate: 400 Gb/s aggregate full-duplex

• Channels: 8 independent full-duplex transmit and receive channels

• Speed per Channel: 53.125 Gb/s

• Reach: Up to 100 meters on OM4 multimode fiber (Host FEC required for up to 70m on OM3 fiber)

• Wavelength: 850nm per lane

• Optical Connector: MPO-16

• Electrical Interface: QSFP-DD MSA-compliant 60-pin edge connector

• Cabling: Uses MTP/MPO-16 connector cables. Proper channel alignment is ensured by internal guide pins; the cable should not be twisted.

Design & Compliance:

This transceiver is engineered in compliance with the QSFP-DD Multi-Source Agreement (MSA) Type 2, covering form factor, optical/electrical connections, and the digital diagnostic interface. It is built to withstand demanding operating conditions, including extreme temperature, humidity, and EMI interference.

Ordering & Payment Terms:

• Minimum Order Quantity (MOQ): Flexible for small orders
• Shipping: DDP (Delivered Duty Paid) to your destination or shipment via your designated courier account.
• Payment Method: T/T (Bank Transfer)
• Payment Terms:
  30% advance payment, with 70% balance due prior to shipment for bulk orders
