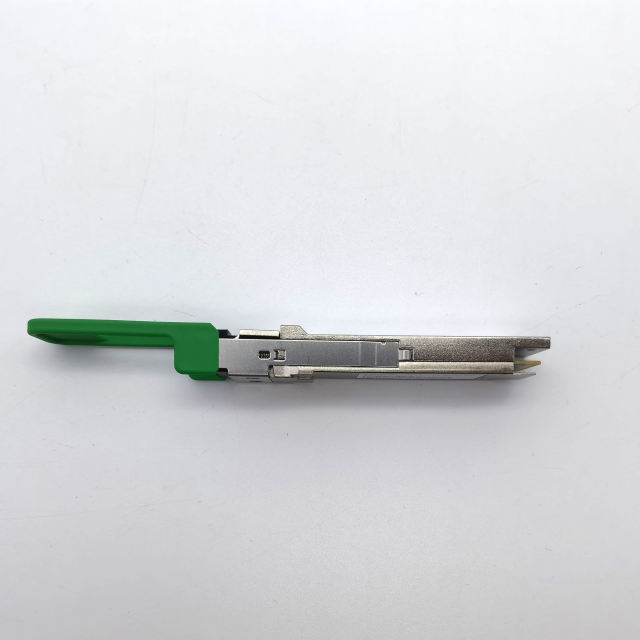

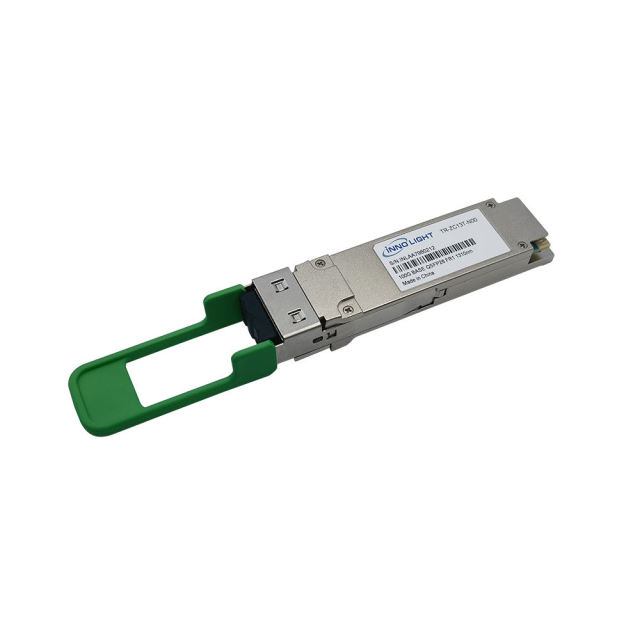

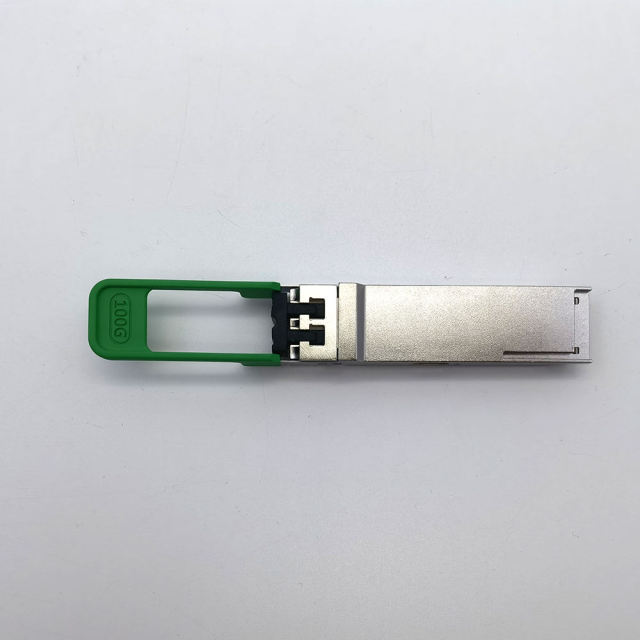

Innolight QSFP28 100G PSM4 Optical Transceiver, 1310nm 2km over SMF with MPO-8 Connector

Brand: Innolight
Part Number: TR-ZC13T-N00
Description: 100G QSFP28 1310nm PSM4 IR4 2km SMF MTP/MPO-12 (8 cores SMF)
Applications: 100GBASE-PSM4, Infiniband EDR
Compatibility: Juniper, Arista, Mellanox, Extreme Network, DCN,

Key Features

• QSFP28 MSA compliant

• Compliant with IEEE 802.3bm 100GBASE-PSM4

• Four independent full-duplex channels

• Supports 103.1 Gb/s aggregate bit rate

• Up to 2km reach over G.652 single-mode fiber (SMF)

• 4x25G electrical interface (OIF CEI-28GVSR)

• Maximum power consumption: 3.5W

• Single +3.3V power supply

• Operating case temperature: 0°C to 70°C

• RoHS-6 compliant

Product Overview

This product is a parallel 100Gb/s Quad Small Form-factor Pluggable (QSFP28) optical module, designed to deliver high port density and cost-effective system solutions. The QSFP28 full-duplex optical module features four independent transmit and receive channels, each supporting 25Gb/s operation, for an aggregate data rate of 100Gb/s over 2km of single-mode fiber.

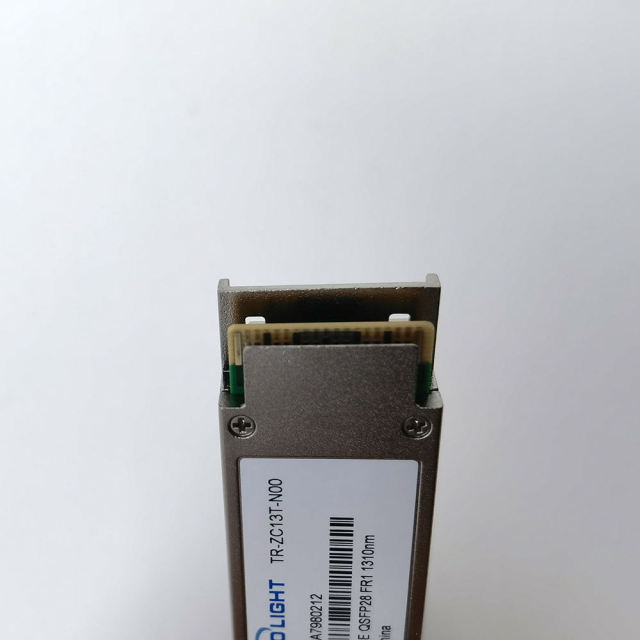

The module interfaces with an optical fiber ribbon cable via an MTP/MPO-12 connector. Guide pins within the receptacle ensure proper alignment, and the cable is typically non-twistable to maintain correct channel-to-channel alignment. Electrical connectivity is provided through an MSA-compliant 38-pin edge-type connector.

Operating on a single +3.3V power supply, the module supports LVCMOS/LVTTL global control signals, including:

• Module Present

• Reset

• Interrupt

• Low Power Mode

A 2-wire serial interface enables advanced control signaling and access to digital diagnostic information. Individual channels can be addressed independently, and unused channels may be shut down to optimize design flexibility.

Designed in accordance with the QSFP28 Multi-Source Agreement (MSA), this module ensures compliance with form factor, optical/electrical connection, and digital diagnostic interface standards. It is built to withstand demanding external operating conditions, including temperature variations, humidity, and EMI interference.

Module management is facilitated via an I2C two-wire serial interface, providing comprehensive control and monitoring capabilities.
