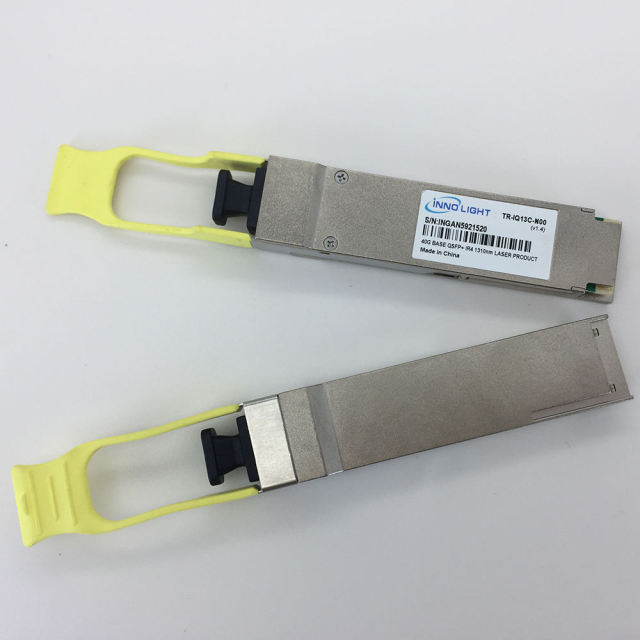

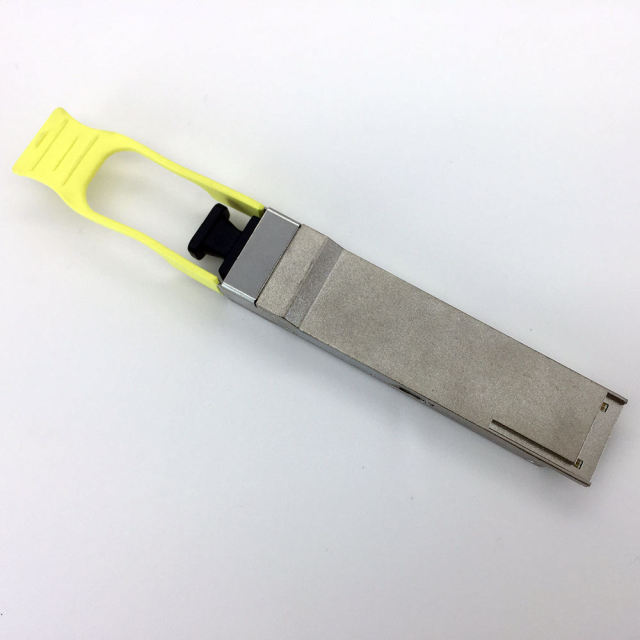

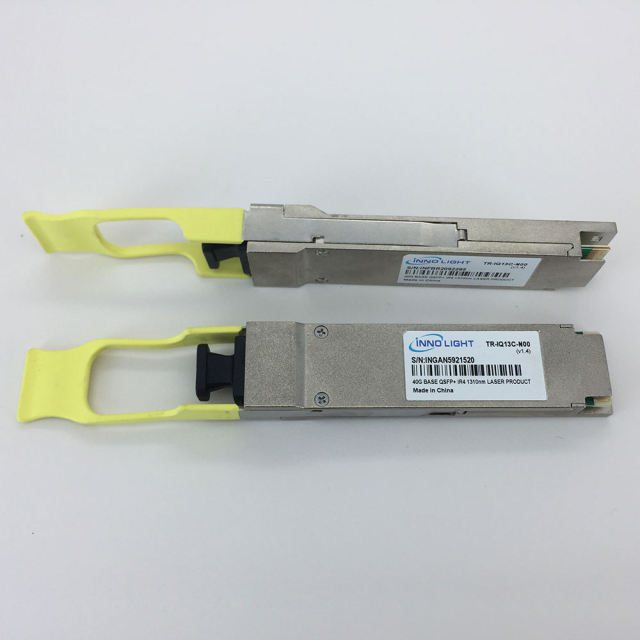

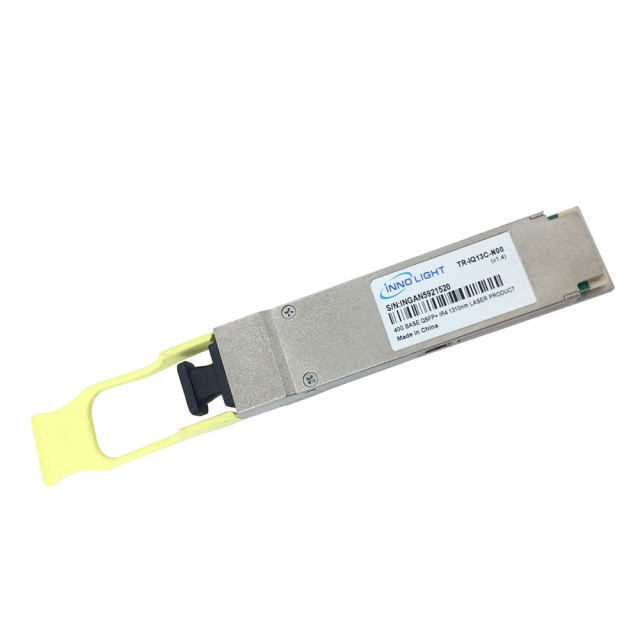

Innolight 40Gb/s QSFP+ IR4 Transceiver, 1310nm, 2km, LC Duplex

Product Overview

The Innolight TR-IQ13C-N00 is a 40Gb/s QSFP+ optical transceiver designed for high-density, high-performance networking in Data Center and Enterprise environments. This module utilizes a parallel optical design to deliver an aggregate data rate of 40Gb/s over a distance of up to 1.4km on single-mode fiber (SMF).

Technical Details

Optical Interface:
The module is a full-duplex transceiver with four independent transmit and receive channels. It is connected via a ribbon fiber cable with an MTP/MPO connector. The internal guide pins of the receptacle ensure proper alignment, and the cable must not be twisted to maintain correct channel-to-channel alignment.

Electrical Interface:

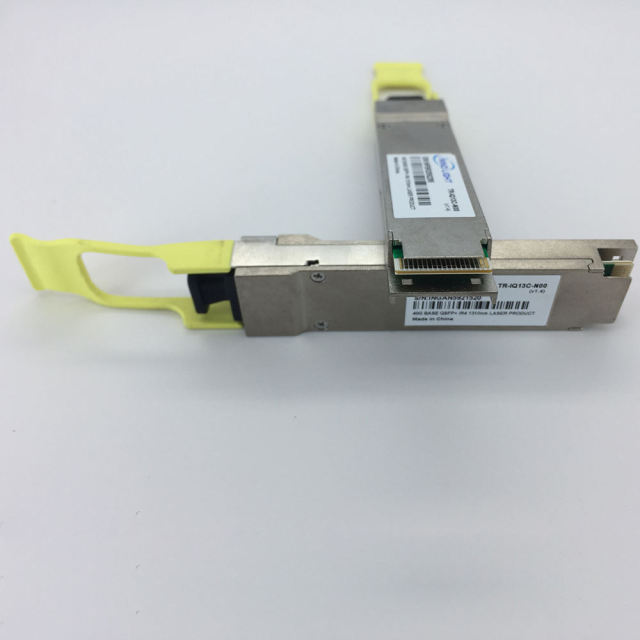

Electrical connection is made through a 38-pin connector, compliant with the Multi-Source Agreement (MSA). The module supports standard LVCMOS/LVTTL global control signals, including:

• Module Present

• Reset

• Interrupt

• Low Power Mode

Management & Diagnostics:
The module can be fully managed via a 2-wire serial interface (I2C). This interface allows for:

• Sending and receiving complex control signals.

• Accessing comprehensive digital diagnostic monitoring (DDM) information.

• Addressing and individually shutting down unused channels for design flexibility and power savings.

Design & Compliance

Designed in accordance with the QSFP+ MSA, this transceiver ensures mechanical and electrical interoperability with other compliant devices. It is built to withstand demanding external operating conditions, including extreme temperature, humidity, and EMI interference.

Ordering & Payment Terms:

• Minimum Order Quantity (MOQ): Flexible for small orders
• Shipping: DDP (Delivered Duty Paid) to your destination or shipment via your designated courier account.
• Payment Method: T/T (Bank Transfer)
• Payment Terms:
  30% advance payment, with 70% balance due prior to shipment for bulk orders
