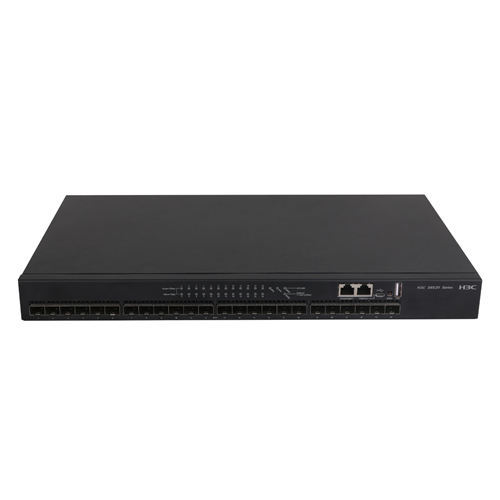

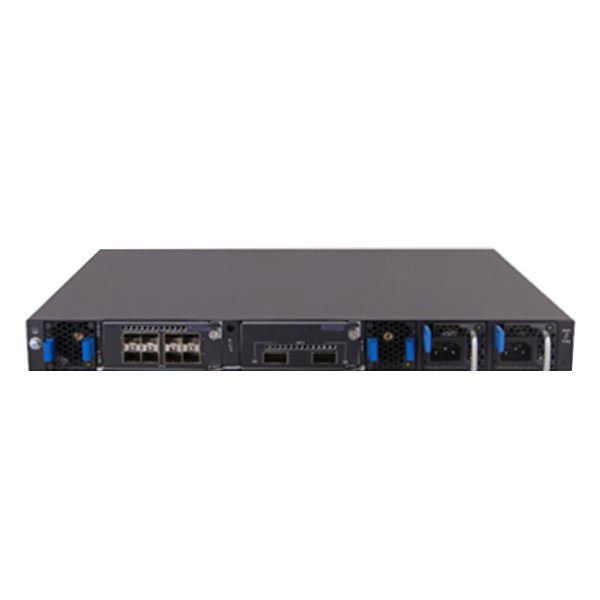

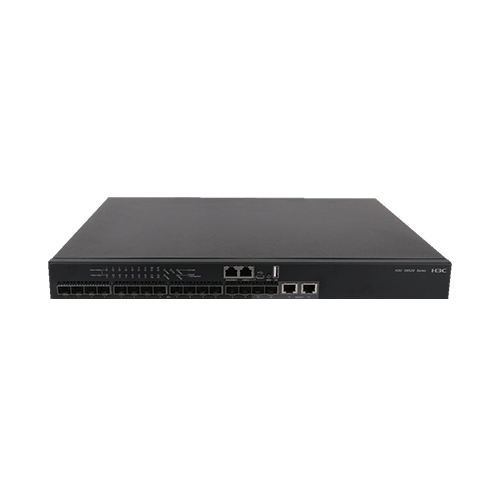

H3C S5560X-34S-EI Gigabit Ethernet Switch

No.S5560X-34S-EI

Downlink Ports: 28 x 10/100/1000BASE-T RJ45
Uplink Ports: 4 x 1/10G SFP+
High-Speed Uplink Ports: 2 x 40G QSFP+
- Fixed Service Ports: 28 x 10/100/1000Base-T Ethernet (RJ45) ports
- Uplink Ports: 4 x 10 Gigabit SFP+ fiber optic ports
- Management Port: 1 x Management Ethernet port
- Expansion: Features one expansion slot, supporting up to 9 optional interface cards for additional Gigabit, 10GE, 25GE, 40GE, and Multi-Gigabit connectivity.
- Communication Mode: Supports both Full-Duplex and Half-Duplex operation.
- Transmission Rate: 10/100/1000Mbps.

  Power: AC Power Supply

Description
Additional Information
Ordering & Payment Terms

The H3C S5560X-34S-EI is a high-performance, intelligent, and scalable Gigabit Ethernet switch designed for enterprise networks. It combines a robust hardware architecture with the advanced Comware 7 operating system to deliver reliable switching with ease of management and a rich set of enterprise features.

Performance Metrics

Switch Capacity: 288 Gbps
Packet Forwarding Rate: 216 Mpps
Box Switching Capacity: 598 Gbps / 5.98 Tbps

Key Features & Functionality

Unified Management: Offers seamless wired and wireless integration with license-based wireless access controller functionality for flexible deployment.
High Availability: Features a reliable hardware design with a modular dual power supply and dual fan design.
Simplified Operations: Embedded SmartMC technology provides an easy-to-use solution for network operation and management.
Advanced Software Features: Includes comprehensive, free-of-charge enterprise functions such as:
- LACP (Link Aggregation Control Protocol)
- Stackable (IRF Technology)
- VLAN Support
- VxLAN
- MACsec
- Layered Security
Hardware: Equipped with 512MB of Flash and 2GB of SDRAM.

Physical Dimensions

Dimensions (H x W x D): 43.6 x 440 x 260 mm
Weight: ≤ 3.6 kg (7.94 lb)

Deployment & Applications

The H3C S5560X-34S-EI is versatile for various network roles. It can serve as an access switch providing Gigabit connections for desktop users, as a core switch for small to medium-sized enterprises, or as an aggregation device in Metropolitan Area Networks (MAN) and industrial networks to handle traffic from downstream switches.

Item	S5560X-30C-PWR-EI	S5560X-54C-PWR-EI	S5560X-34S-EI	S5560X-54S-EI
Port Switching capacity	288Gbps	336Gbps	288Gbps	336Gbps
Box Switching capacity	598Gbps/5.98Tbps
Packet forwarding rate	216 Mpps	252 Mpps	216 Mpps	252 Mpps
Dimensions (H × W × D)	43.6 × 440 × 460 mm (1.72 × 17.32 × 18.11 in)	43.6 × 440 × 460 mm (1.72 × 17.32 × 18.11 in)	43.6 × 440 × 260 mm (1.72 × 17.32 × 10.24 in)	43.6 × 440 × 260 mm (1.72 × 17.32 × 10.24 in)
Weight	≤ 9.2 kg (20.28 lb)	≤ 9.6 kg (21.16 lb)	≤ 3.6 kg (7.94 lb)	≤ 3.9 kg (8.60 lb)
Flash/SDRAM	512MB/2GB
Management Ethernet ports	1
Console ports	1 × RJ-45 console port 1 × Micro-USB console port Only the Micro-USB console port is available when you connect both ports.
Service ports	24 × 10/100/1000Base-T autosensing Ethernet ports 4 × 10G SFP+ ports	48 × 10/100/1000Base-T autosensing Ethernet ports 4 × 10G SFP+ ports	28 × 10/100/1000Base-T autosensing Ethernet ports (including 4 combo interfaces) 4 × 10G SFP+ ports 2 × 40G QSFP+ ports	48 × 10/100/1000Base-T autosensing Ethernet ports 4 × 10G SFP+ ports 2 × 40G QSFP+ ports
Expansion slots	1	1	N/A	Expansion slots
Stacking bandwidth	Maximum 160Gbps
Compatible interface modules	2-port 40GE QSFP+ interface module 2-port 25G SFP28 interface module 2-port 10G SFP+ interface module 2-port 10G electrical interface module 4-Port 10/100/1000BASE-T Ethernet,6-Port SFP(2-Port Combo) Interface Module 8-port 10G SFP+ interface module 8-Port 10G SFP Plus with MACSec Interface Module 8-Port 1/2.5/5G BASE-T Ethernet Copper Interface Module 8-Port 1/2.5/5/10G BASE-T Ethernet Copper Interface Module		N/A	N/A

Ordering & Payment Terms:

Minimum Order Quantity (MOQ): Flexible for small orders
Shipping: DDP (Delivered Duty Paid) to your destination or shipment via your designated courier account.
Payment Method: T/T (Bank Transfer)
Payment Terms:
30% advance payment, with 70% balance due prior to shipment for bulk orders

BANK INFORMATION

Bank Name: DBS BANK (HONG KONG) LIMITED
Account Name: Shenzhen VAN Electronics Co., Ltd.
Account No.: 798 291 1671
Bank Address: 11th Floor, The Center, 99 Queen's Road Central, Central, Hong Kong
Swift Code: DHBKHKHH

Contact for Quotation:
Kindly email your requirements to sales@szvan.com for a customized quotation and optimal solution.
Attn: Jessica Lee
