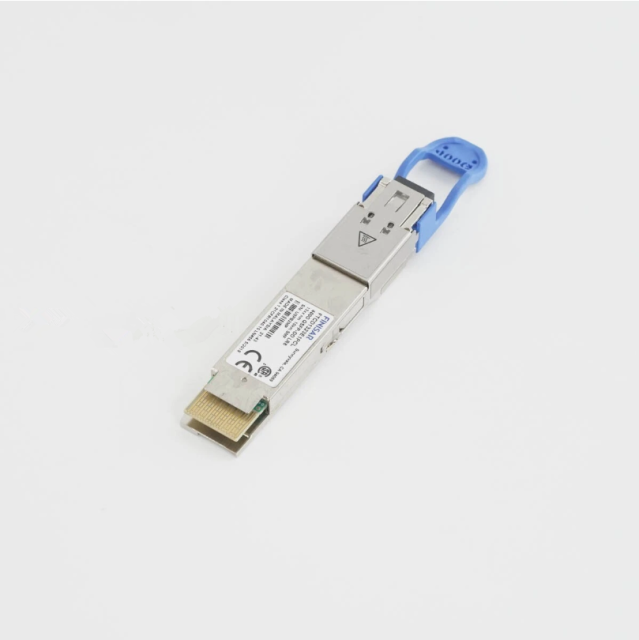

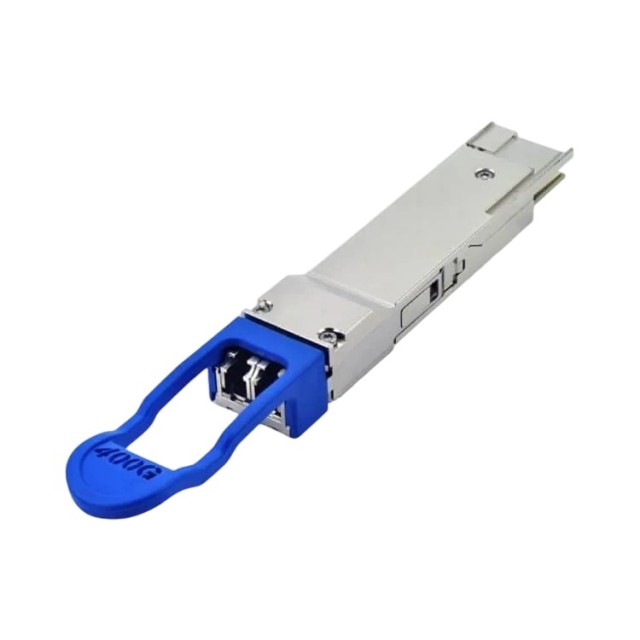

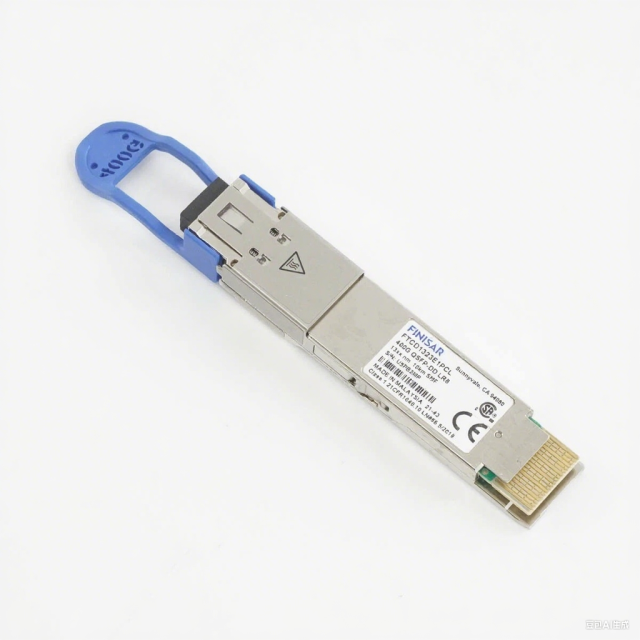

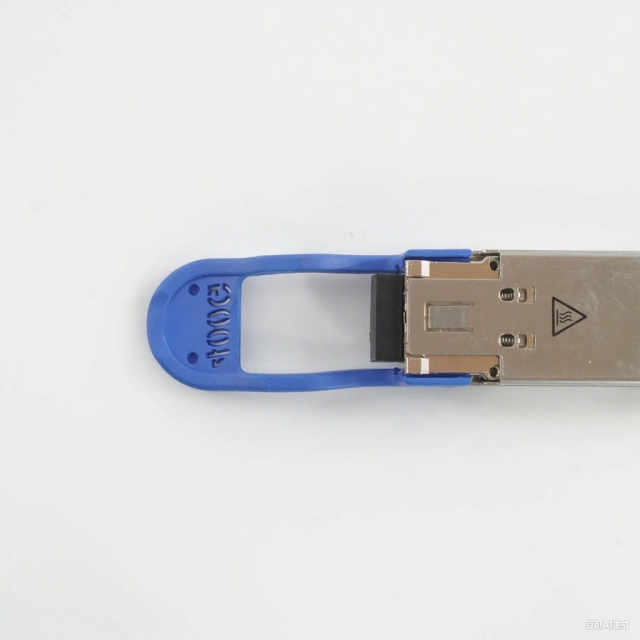

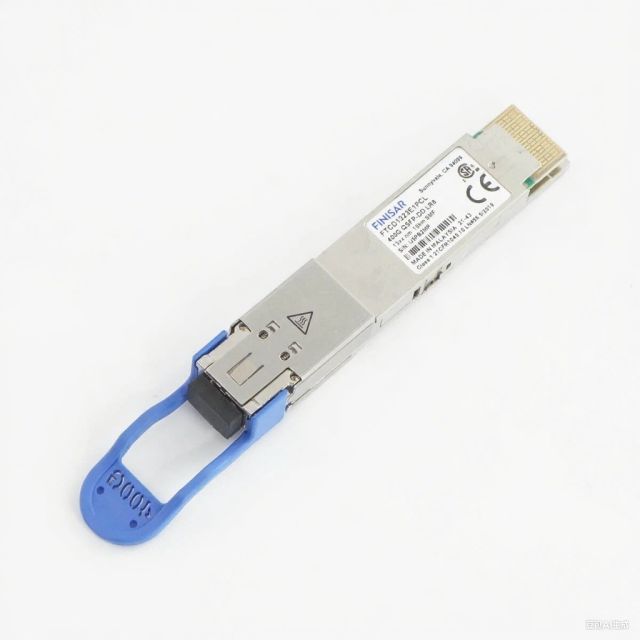

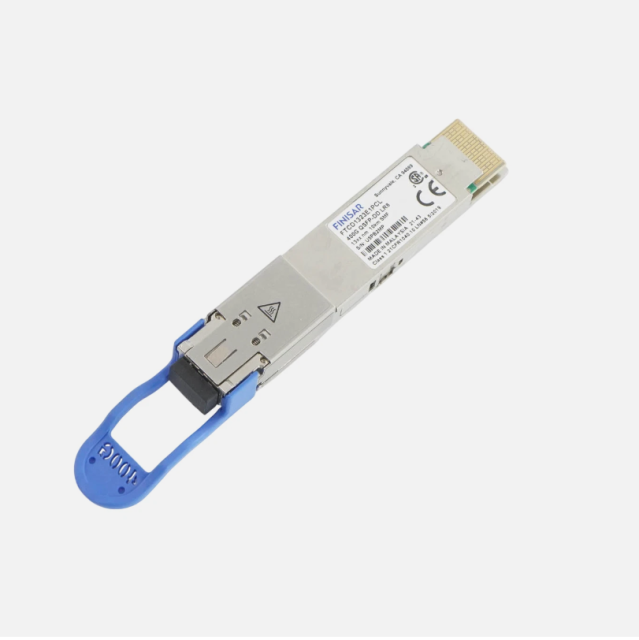

Finisar FTCD1323E1PCL 400GBASE-LR8 QSFP-DD Transceiver Module

Finisar FTCD1323E1PCL 400GBASE-LR8 QSFP-DD Optical Transceiver Module

• Function: 400G Ethernet optical transceiver for high-speed data transmission.
• Form Factor: QSFP-DD (Quad Small Form-Factor Pluggable Double Density).
• Data Rate: 400 Gbps.
• Standard/Application: 400GBASE-LR8.
• Wavelength: 1310nm (utilizing 8x LWDM lanes).
• Emitting Source: 8x LWDM DFB (Distributed Feedback) Lasers.
• Fiber Type: Single-Mode Fiber (SMF).
• Connector Type: Duplex LC.
• Transmission Distance: Up to 2 km.
• Operating Temperature Range: 0°C to 70°C (32°F to 158°F).
• Power Supply: 3.3V.
• Typical Power Consumption: ~13W.
• Network Interface: Wired Fiber Optic (Note: "Wireless Lan" in the source appears incorrect for this module).
• Compliance: RoHS compliant.
• Actuation: Features a pull tab for insertion/removal.
• Warranty: 1 year.

Ordering & Payment Terms:

• Minimum Order Quantity (MOQ): Flexible for small orders
• Shipping: DDP (Delivered Duty Paid) to your destination or shipment via your designated courier account.
• Payment Method: T/T (Bank Transfer)
• Payment Terms:
  30% advance payment, with 70% balance due prior to shipment for bulk orders
