Finisar 400G 500m 1310nm MMF Optical Module

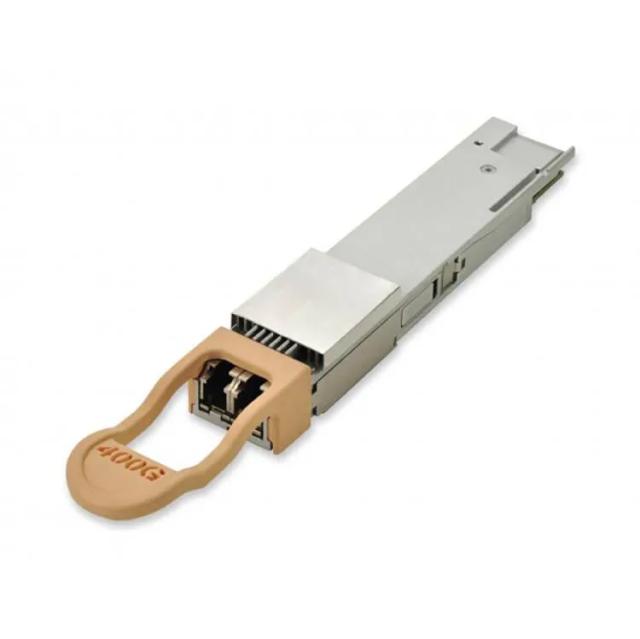

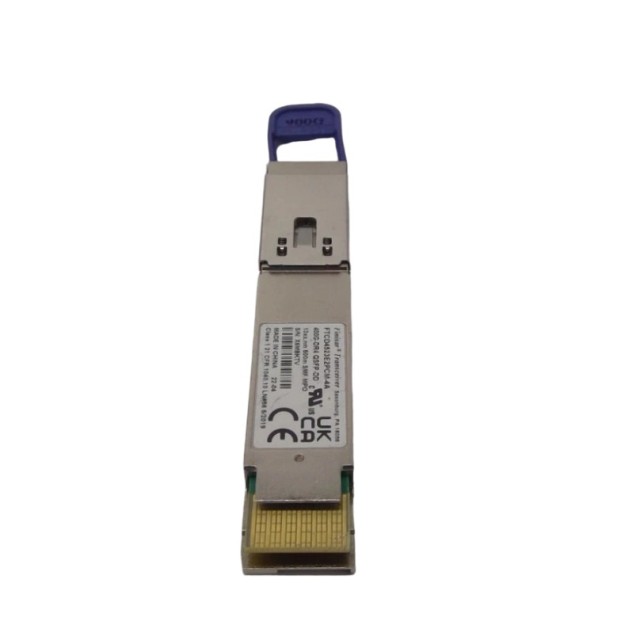

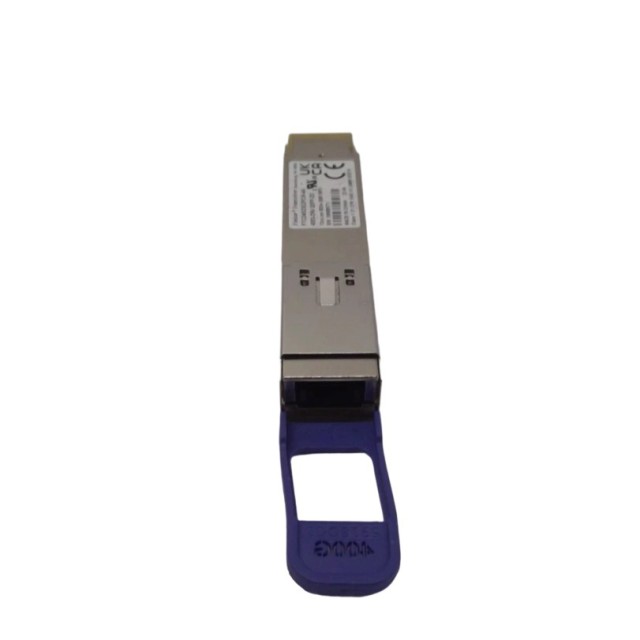

The FTCD4533E2PxM DR4+ QSFP-DD transceiver module delivers 400G Ethernet connectivity over up to 2 km of single-mode fiber (SMF). It leverages four 1310nm EML lasers to support high-speed data transmission with an aggregate rate of 425 Gb/s. Designed for hot-pluggable integration into QSFP-DD ports, this module is ideal for data center interconnects, high-performance computing, and enterprise networks.

Key Features:

• Form Factor: QSFP-DD Type 2 (hot-pluggable)
• Data Rate: 425 Gb/s aggregate (4x 100G PAM4 optical lanes)
• Reach: 2 km over parallel SMF
• Wavelength: 1310nm (4x EML lasers)
• Electrical Interface: 8x 50G PAM4 retimed lanes
• Optical Connector: MPO-12/APC receptacle
• Power Supply: Single 3.3V
• Power Consumption: <12W (commercial temp), <10W (limited temp)
• Management: I2C with digital diagnostics (QSFP28 MSA/AN-20xx compliant)
• Temperature Range:

• • Commercial (c-temp): 0°C to +70°C (case)

  • Limited Temp: 20°C to +60°C (case)

• Compliance: QSFP-DD MSA, QSFP28 MSA, IEEE 802.3cu, portions of IEEE 802.3bm, PSM4 MSA, RoHS-6

Applications:

• 400 Gigabit Ethernet links
• Data center spine-leaf architecture
• Cloud infrastructure
• High-bandwidth network upgrades

Standards & Certifications:

• • Compliant with QSFP-DD MSA hardware specifications

  • Meets IEEE 802.3cu (100G/lane over SMF)

  • RoHS-6 certified (AN-20383/4)

  • Pull-tab design for secure insertion/removal
