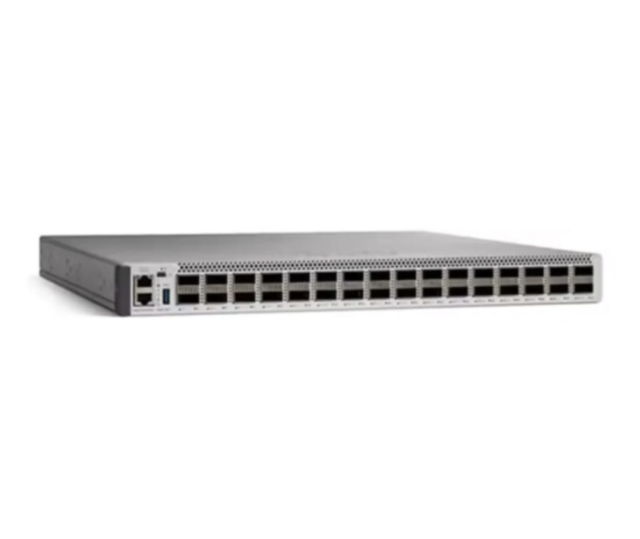

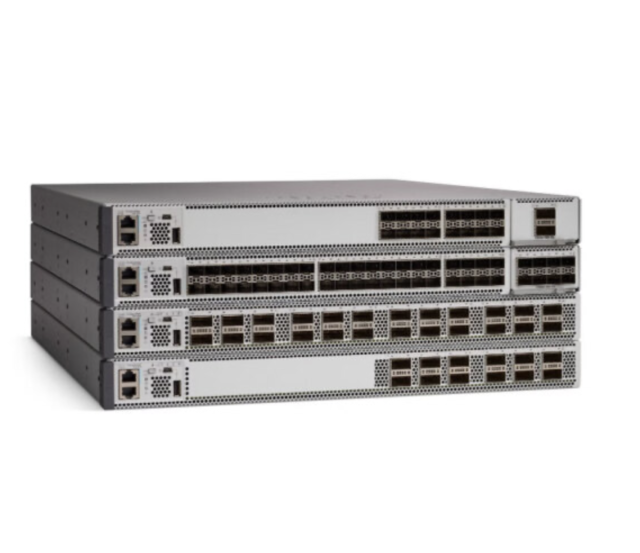

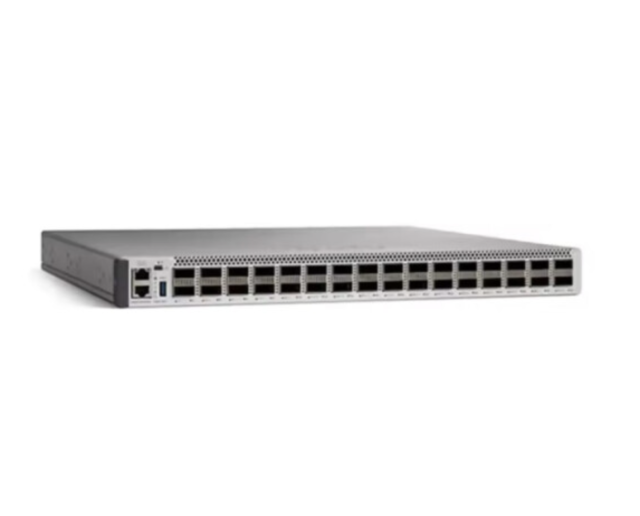

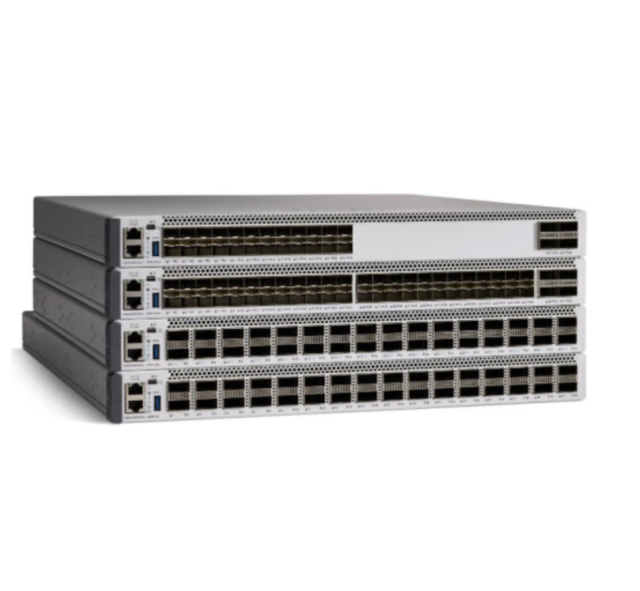

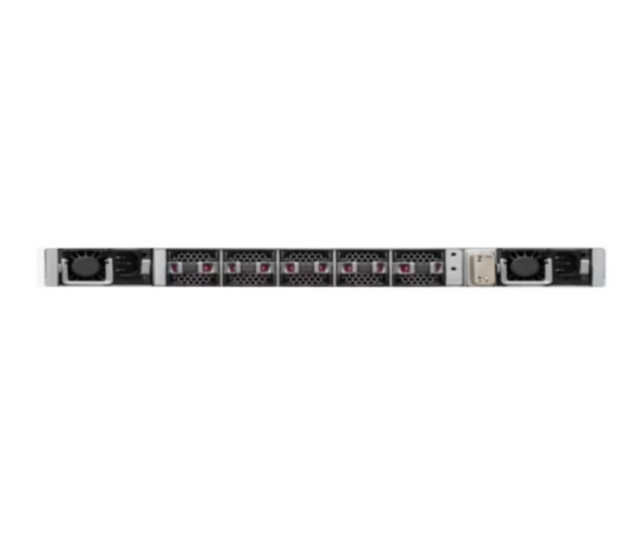

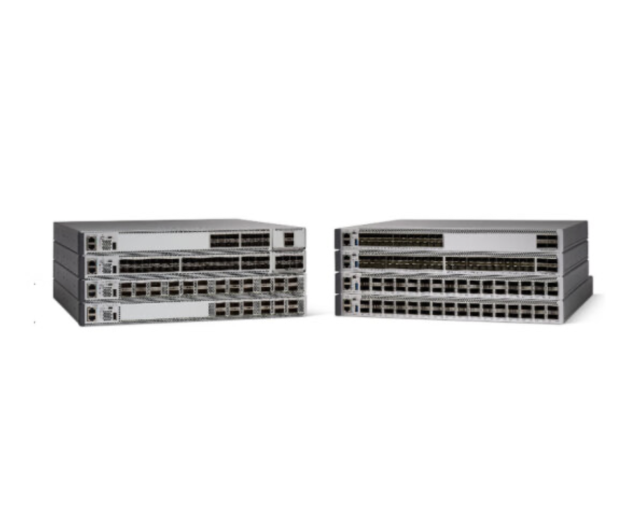

Cisco Catalyst 9500 Core Switch - High-Density 10G with PoE+ and SNMP

No.C9500 Series
  • High-Performance ASIC: Equipped with Cisco UADP ASICs offering programmable pipelining, unified buffering (up to 36 MB per ASIC), and template-based configurable L2/L3 forwarding, ACL, and QoS.

  • High Switching Capacity: Supports up to 6.4 Tbps of switching capacity and up to 2 Bpps forwarding performance.

  • Power over Ethernet (PoE): All 24 ports support PoE/PoE+ for connected devices.

  • Advanced Stacking & Virtualization: Features StackWise virtualization technology for operational efficiency, high resiliency, and expanded system bandwidth with multi-chassis EtherChannels.

  • Application Hosting: Includes Intel 2.4-GHz x86 CPUs with up to 960 GB SSD storage for container-based application hosting (e.g., Cisco ThousandEyes Enterprise Agent).

  • High Precision Timing: Built-in support for Precise Time Protocol (PTP, IEEE 1588v2) with sub-microsecond accuracy and IEEE 802.1ba Audio Video Bridging (AVB).

  • High Reliability: Features platinum-grade AC/DC power supplies, field-replaceable fan trays, and a mean time between failures (MTBF) of 299,000 hours.

  • Cisco Catalyst 9500 Core Switch - High-Density 10G with PoE+ and SNMP
  • Cisco Catalyst 9500 Core Switch - High-Density 10G with PoE+ and SNMP
  • Cisco Catalyst 9500 Core Switch - High-Density 10G with PoE+ and SNMP
  • Cisco Catalyst 9500 Core Switch - High-Density 10G with PoE+ and SNMP
  • Cisco Catalyst 9500 Core Switch - High-Density 10G with PoE+ and SNMP
  • Cisco Catalyst 9500 Core Switch - High-Density 10G with PoE+ and SNMP
  • Description
  • Ordering & Payment Terms

C9500 Series Ethernet Switch - Product Overview

The  C9500 Series is a high-performance, enterprise-grade managed switch designed for demanding network environments. Featuring a robust architecture with programmable Cisco UADP ASICs, it delivers high switching capacity, advanced features, and exceptional reliability with a 299,000-hour MTBF.

Technical Specifications

Category Specification
Product Name C9500 Series Ethernet Switch
Device Type 24-Port Managed Switch
Condition & Warranty New In Box (NIB) Original, 3-Year Warranty
Physical Ports 24 x Ethernet Ports (All with PoE Support)
High-Speed Uplinks Configurable with up to: 32x 100G QSFP28, 32x 40G QSFP+, 48x 25G SFP28, or 48x 10G SFP+ ports (varies by model)
Transmission Rate 10/100/1000Mbps (on 24 copper ports)
Communication Mode Full-Duplex & Half-Duplex
Switch Capacity 480 Gbps (System capacity up to 6.4 Tbps)
Jumbo Frames 9198 bytes
Key Functions LACP, PoE, SNMP, Stackable, VLAN Support, Static/Dynamic NAT/PAT
QoS Scale 5120 Entries
Mean Time Between Failures (MTBF) 299,000 hours
Weight 16.33 Pounds (approx. 7.4 kg)

Models Available

C9500-12Q-E, C9500-12Q-A, C9500-16X-2Q-E, C9500-16X-2Q-A, C9500-16X-E, C9500-16X-A, C9500-24Q-E, C9500-24Q-A, C9500-24Y4C-A, C9500-24Y4C-E, C9500-32C-E, C9500-32C-A, C9500-32QC-E, C9500-32QC-A, C9500-40X-2Q-E, C9500-40X-2Q-A, C9500-40X-E, C9500-40X-A, C9500-48X-E, C9500-48X-A, C9500-48Y4C-E, S9500-48Y4C-A

Additional Information

  • Availability: In Stock

  • Protocols & Routing: Scalable Layer 3 routing (IPv4, IPv6, and multicast) and Layer 2 switching tables.

  • Management: Supports SNMP and offers optional Meraki Cloud monitoring.
