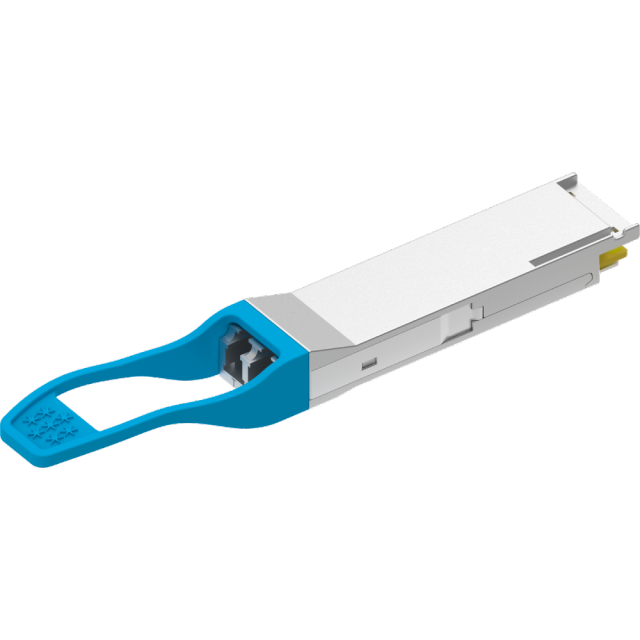

100G QSFP28 PSM4 Optical Transceiver Module 1310nm DML, 2km / 10km Reach

100G QSFP28 PSM4 Optical Transceiver

• Application: Medium to long-distance interconnections within data centers.

• Compliance: 100G PSM4 MSA specification.

• Compatibility: 100 Gigabit Ethernet and InfiniBand EDR protocols.

• Technology: Parallel Single-Mode Fiber (PSM4) with four transmit and four receive fibers.

• Wavelength: 1310nm.

• Reach: Options for up to 2km or 10km (both with FEC enabled).



  Part Number	Description
  VQM-SPO101-IR4C	100GE QSFP28 PSM4 DML 1310nm 2km Optical Module
  VQM-SPO101-IR4T	100GE QSFP28 PSM4 DML 1310nm 2km Optical Module, Industrial Grade
  VQM-SPO101-LR4C	100GE QSFP28 LR4 DML 1310nm 10km Optical Module
  VQM-SPO101-LR4T	100GE QSFP28 LR4 DML 1310nm 10km Optical Module, Industrial Grade

  Product Specifications: Pluggable Optical Module

  • Product Type: Pluggable Optical Modules

  • Form Factor: QSFP28

  • Media Type: Single-Mode Fiber (SMF)

  • Wavelength: 1310nm




  Key Performance Parameters

  • Data Rate: 100G to 112G

  • Reach: 2km to 20km

  • Interface: MPO/MTP



    Applications & Protocols

    • Primary Applications:

      • 5G Carrier Network

      • Data Center

    • Supported Protocols:

      • CPRI / eCPRI

      • Ethernet

      • InfiniBand
