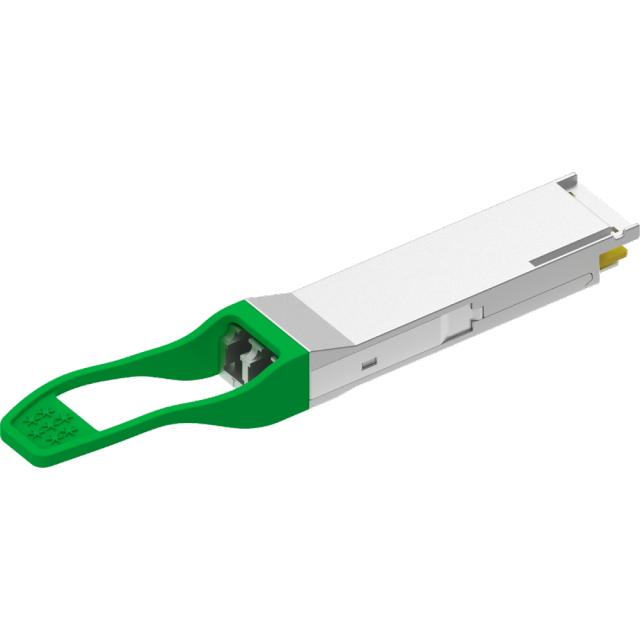

100G QSFP28 CWDM4 Optical Transceiver
Description:
This transceiver module is designed for high-performance 100G interconnects in data centers, supporting links from medium to long range. It is fully compliant with the CWDM4 MSA specification and is interoperable with both 100G Ethernet and InfiniBand EDR standards.
Key Features:
Form Factor: QSFP28
Compliance: CWDM4 MSA
Protocols: 100GbE and InfiniBand EDR
Wavelengths: Integrated MUX/DEMUX for 1271nm, 1291nm, 1311nm, and 1331nm channels.
Media: Duplex Single-Mode Fiber (SMF)
Reach: Up to 2 km or 10 km variants (with FEC)
| Part Number | Description | Form Factor | Technology | Grade | Reach |
|---|---|---|---|---|---|
| 2km Reach Modules | |||||
| VQS-SPO101-CIR4C | 100GE CWDM4 DML Optical Module | QSFP28 | CWDM4 DML | Commercial | 2 km |
| VQS-SPO101-CIR4T | 100GE CWDM4 DML Optical Module | QSFP28 | CWDM4 DML | Industrial | 2 km |
| 10km Reach Modules | |||||
| VQS-SPO101-CLR4C | 100GE CWDM4 DML Optical Module | QSFP28 | CWDM4 DML | Commercial | 10 km |
| VQS-SPO101-CLR4T | 100GE CWDM4 DML Optical Module | QSFP28 | CWDM4 DML | Industrial | 10 km |
Product Type: Pluggable Optical Modules
Key Applications: Data Center Interconnects
Form Factor: QSFP28
Data Rate: 100G to 112G per Channel
Supported Protocols:
Ethernet
InfiniBand
Media Type: Single-Mode Fiber (SMF)
Operating Wavelength: CWDM
Transmission Reach: 2 km to 20 km
Fiber Interface: Dual LC Duplex
